PIR Movement Sensor - Fall Alarm for Existing Nurse Call
An infrared motion sensor alerting to movement. Qty 1

PIR Movement Sensor - Fall Alarm for Existing Nurse Call

More Views

£174.00

* Required Fields

An infrared motion sensor alerting to movement.

The PIR Motion sensor is a small battery-powered sensor that can be positioned in a variety of ways to alert to movement through a doorway, corridor, next to a bed or over a wider area.

The sensor works using the same infrared technology as the systems used to turn on outdoor lighting. The sensor is positioned pointing towards the area where movement detection is requried. Sensor can be positioned on a wardrobe or wall pointing towards the area next to the bed. When movement is detected in this area the sensor sends the alert through existing call system.

By adjusting the eyelids over the sensor it is possible to steer the sensor’s beam so that it only detects over
a certain area. The sensor can work in both darkness and light.

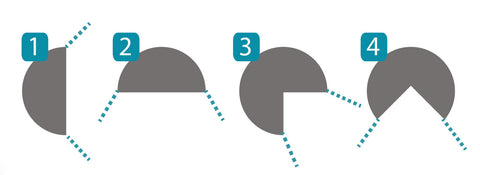

The ‘eye’ has two eyelids which move to steer the angle of the detection beam. They can be rotated to give a very tight angle or opened up to give a very wide detection field. By choosing the right position for the sensor and setting the angle, any detection setup is possible. The diagram below demonstrates some common configurations.

Setup1 is the sensor position detecting movement to the right. Setup2 gives a wide detection area across a room or hallway. Positioned at head height on a wall, movement across the whole room is detected. Setup3 gives detection below and to the right and Setup4 will detect movement infront of and below the sensor. The beam has a long range of over ten meters. Closing the eyelids totally will stop the sensor from detecting, as will switching the sensor off. Experiment with position and setup for the perfect system.

Specifications:

Control box - pager-linked:
Power supply 2x AA Alkaline Battery (Removable, not rechargeable)
Frequency 433.92MHz
Bit Rate 1200 - 7uV/M
Code format POCSAG
Dimensions (pager-linked): 147mm x 88mm 25mm

Control box - plug-matched:
Power supply 2x AA Alkaline Battery (Removable, not rechargeable)
Dimensions (plug-matched): 117mm x 78mm 24mm
Weight with battery 140g

We can easily match connections for most call system models including:

  • Ackermann Connexus
  • Aidcall ATX2000
  • Aidcall ATX3000
  • Aidcall ATX4000
  • Aidcall ATX5000
  • Alarm Tec
  • Arm
  • Ascom
  • Av tech
  • Bloomby Niko
  • C tec
  • Call Line
  • CareCom
  • Chubb
  • Courtney Thorne
  • Eclipse
  • Eclipse change over box
  • Intercall 600/700
  • MB electronics 3002 NCPP
  • Nursecall Pear Push Transmitter
  • Medicall 800
  • Medicare HTM4000
  • Medicare HTM6000
  • Medicare HTM9000
  • Modern
  • Ncall - Telearm
  • Nursecall 700 & Nursecall 600
  • Nursecall 7000
  • Nursecall 800
  • Prince
  • Quantec
  • Rondish
  • SAS gemini
  • SAS network 1
  • SAS network 2
  • Saturn
  • Tate
  • TeleAlarm - Companion 90
  • Tunstall
  • Tunstall (Swindon)
  • Wandsworth Safecall
